Назоратчии дисплейи LED Novastar MCTRL660 PRO

  • Контроллерҳои Novastar барои дисплейҳои дарунӣ ва беруна мувофиқанд, ҳам кирояи саҳна ва ҳам установкаҳои собит.

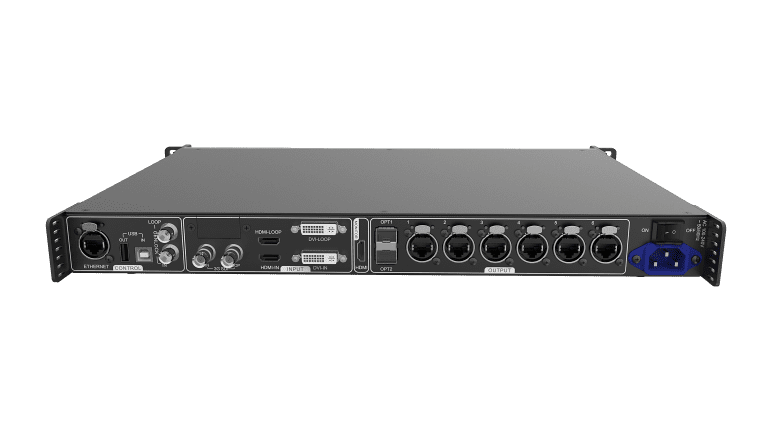

  • Пайвасткунакҳои видео:
  • Вуруд: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × single-link DVI.
  • Натиҷа: 6 × Gigabit Ethernet port, 2 × 10G optical port.
  • Loop output: 1 × 3G-SDI LOOP, 1 × HDMI 1.4a LOOP, 1 × DVI LOOP.

1005,0 $

Inquire Now
SKU: NOVA-MCTRL-660-PRO Категорияҳо: , тег:

Тавсифи

Novastar MCTRL660 PRO LED Display Controller Details

Novastar MCTRL660 PRO LED Display Controller is mainly used for the rental and fixed fields, such as concerts, live events, security monitoring centers, ва sports centers.

  • Advanced Technologies:
  • Ultra-high input color depths: 10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4
  • input resolutions: 1920×1080@60Hz
  • Supports individual Gamma adjustment for RGB when the color depth of input source is 10-bit or 12-bit.
  • Dual working modes: working as sending card and fiber converter
  • One-click backup and recovery
  • Image mirroring, allowing for more cool and dazzling stage effects
  • Auto LED screen configuration
  • Web control
  • Pixel level brightness and chroma calibration
  • Monitoring of inputs
  • Cascaded дастгирй мекунанд.



Параметрҳои электрикӣ Шиддати вуруд AC 100 V–240 В, 50/60 Hz
Истеъмоли қувваи барқ 10 В
Муҳити амалиётӣ Ҳарорат -20°C-60 °C
Намӣ 0% RH–90% RH, конденсация накардан
Андозаҳо 482.6 мм × 349.0 мм × 50.7 мм
Талаботи фазо 1У
Вазни холис 4.6 кг
Сертификатсияҳо CB, RoHS, EAC, FCC, UL/CUL, LVD, EMC, KC, CCC, PSE

Маълумот оид ба бастабандӣ

 Each controller is provided with a carrying case, accessory box and packing box.

The controller and accessory box (containing controller related wires and accessories) is packed in the carrying case and the carrying case is packed in the packing box.
Қуттии интиқол 550 мм × 440 мм × 175 мм, white cardboard box

Қуттии лавозимот

 one MCTRL660 PRO unit

one Ethernet cable (1.5 м)

як сими DVI (1.5 м, double magnetic ring design, EMC) 1 × сими USB (1.5 м)

one HDMI cable (1.5 м)

one Power cord
Қуттии бастабандӣ 530 мм × 140 мм × 410 мм, craft paper box



Маълумоти Иловагӣ

Истеҳсолкунанда

Новастар
