Novastar SIM7100E PCIE 4G Module
Novastar professional LED video controller, is designed specially to meet the needs for rental and street led displays.
Novastar SIM7100E PCIE 4G Module.
78,0 $
Description

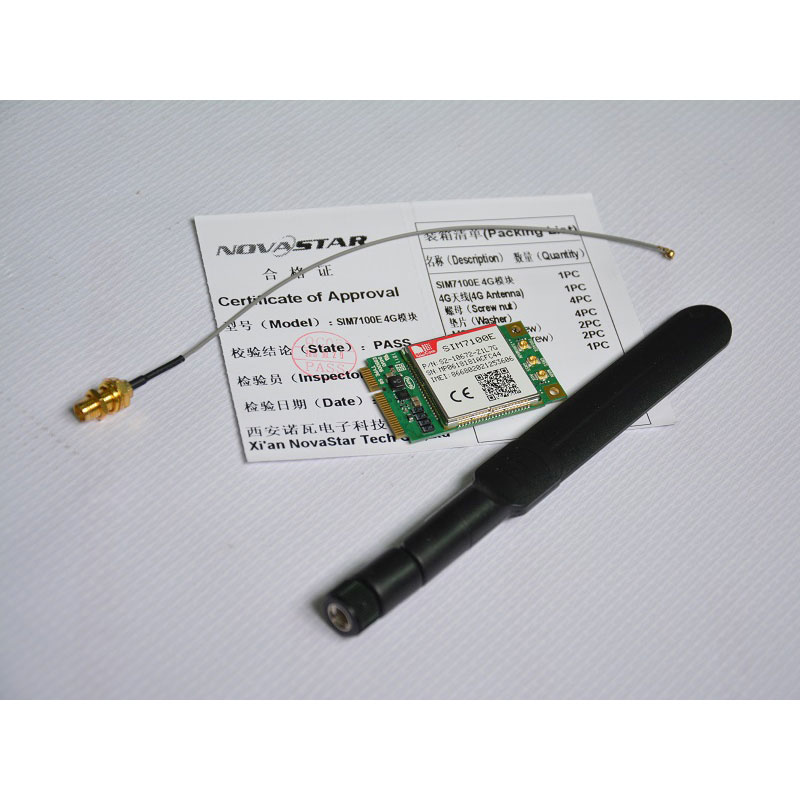

Novastar SIM7100E PCIE 4G Module Details
Novastar SIM7100E PCIE 4G Module
| SIMCOM SIM7000E Technical | ||
| Electrical specifications | Output power | GSM900: 2W DCS1800: 1W |
| Supply voltage range | 3.0V~ 4.3V, Typ: 3.8V* Operation | |
| Consumption | Power off: 7uA PSM: 9uA Sleep: 1mA Idle: 11mA |
|
| Physical specifications | Dimensions | 24 X 24 X 2.6mm |
| Weight | 3.0g | |
| Working environment | temperature | -40℃ to +85℃ |
| Features | Support Tri-Band 4G FDD-LTE B3/B8/B20 Support 2G GPRS/EDGE 900/1800Mhz Control Via AT Commands GNSS (GPS,GLONASS and BeiDou/Compass, Galileo, QZSS) |
|
| Interfaces | USB2.0 x 1 (high-speed) UART x2 (7-wire UART and 2-wire UART interface multiplex from GPIO) SIM card x1 (1.8V and 3V) I2C x 1 GPIO x 5 ADC x 1 |
|
| Certifications | CE*/ RoHS/REACH/TA/CCC*/CTA* | |
Additional information
| Manufaturer | Novastar |
|---|
