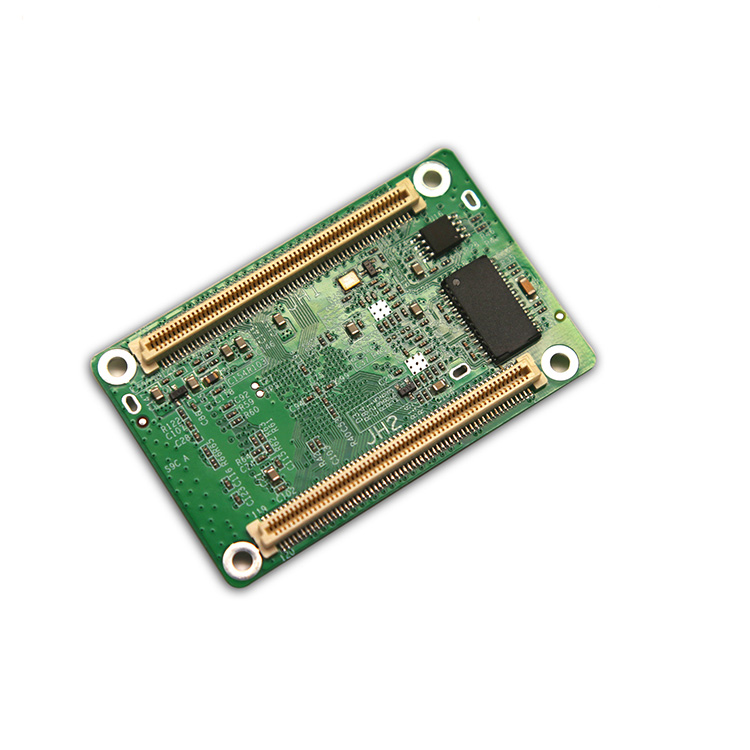

Novastar A4S LED mini Receiving Card

Novastar professional LED video controller, is designed specially to meet the needs for rental and street led displays.
Resolution ：256 x 256 pixels.
Dual backup of display parameters.
24-group RGB Parallel output.
Temperature, power voltage and network cable communication status monitor.
Pixel-by-pixel brightness/chroma calibration.

14,0 $

Out of stock

Description

Novastar A4S LED mini Receiving Card max support 256*256 pixels.

A4S is the new receiver card from Nova, single card max support 256 x 256 pixels.

It has the follow up features:

1) 256×256 resolution
2) 24 RGB data out
3) MOM Interface
4) Pixel level color & brightness calibration
5) RCFG Backup & Read
6) Cabinet Mapping

Maximum Loading Capacity	256×256 pixels
Electrical Parameters	Input voltage	DC 3.3 V–5.5 V
	Rated current	0.5 A
	Rated power consumption	2.5 W
Operating Environment	Temperature	-20°C–+70°C
Operating Environment	Humidity	10% RH–90% RH, non-condensing
Storage Environment	Temperature	-25°C–+125°C
Packing Information	Packing specifications	Each card is shipped with an antistatic bag and anti-collision foam. Each box contains 40 cards.
Packing Information	Packing box dimensions	378.0 mm × 190.0 mm × 120.0 mm
Dimensions	70.0 mm × 45.0 mm × 7.3 mm
Net Weight	17.3 g
Certifications	RoHS EMC Class B

Manufaturer	Novastar
